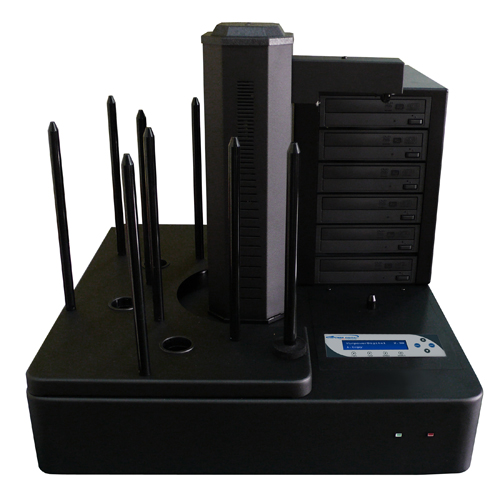

Aero Blu-ray/DVD/CD Autoloader

Description

Often those who need to duplicate larger volume of optical discs like CD, DVD, or Blu-ray discs are caught between the need for convenience and the added cost to achieve it. Well, the Aero series standalone autoloader duplicator is the answer. The Aero series is the perfect blend of capacity, speed, performance, reliability, and affordability. With the option to copy a single source or multiple sources using Vinpower Digital's useful multi-master recognition technology (MMRT) allows the user to make the exact number of copies required from a single master or multiple masters from a single setting. The Aero series allows the user the flexibility to work on other projects with the comfort in knowing that their duplication will be performed automatically with minimal interaction. When you're ready to make the next step from manual duplication to automated, the Aero series has a model perfect for your needs.

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Maximum 220 or 660 disc capacity.
  3. Able to copy Blu-Ray discs:
    Able to duplicate Blu-Ray discs as well as DVD and CD discs.
  4. Multi-Master Recognition Technology (MMRT):
    Can load multiple masters at once to run multiple duplication jobs in succession. In addition able to load the master content to HDD while copying first run of discs.
  5. Support automatically writer disable feature when specified "Maximum Failures/Per Recorder" is reached.
  6. Support automatically job abort feature when specified "Maximum Total Failures" is reached
  7. Support automatically eject and close the tray when the media wasn't properly placed.
  8. Auto-Copy feature:
    System starts duplication process automatically by assuming the 1st disc in the input spindle is the master disc and remaining are the blanks.
  9. Supports Manual Duplication Mode.
  10. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  11. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  12. DVD+R DL Overburn:
    Can extend the listed capacity from 8.5GB up to 8.7GB to allow the user to capture more content on a single DVD+R DL disc.

Additional Features:

  1. Multi-Language capability for English, Spanish and French:
    The text on the LCD screen can currently be displayed in English, Spanish and French.
  2. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  3. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  4. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  5. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.'
  6. Fast Key Support:
    4 fast keys for faster operations.
  7. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  8. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  9. Selectable CD and DVD burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  10. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  11. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  12. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD, or DVD as well as the correct format to copy.
  13. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  14. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  15. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

SPECIAL FEATURES:
The Aero series autoloader features Multi-Master Recognition Technology (MMRT). Traditionally, autoloaders can only handle one duplication job at a time and additional manpower is needed to load a new duplication job (ex. Load new master disc, insert more blank discs, etc.) Now, with this totally revolutionized auto-master recognition technology, the Aero can handle multiple duplication jobs per run by itself. For example, if you want to make 200 copies of job A, 50 copies of job B, and 100 copies of job C. Traditional autoloaders will only process one job per run and need someone to load job B and job C to the autoloader. However, with the Aero featuring MMRT, it will process all three jobs sequentially per run by itself, without the need to load and reload additional master disc. This process affords the user more time to dedicate to other matters rather than keeping a constant eye on the autoloader.


Model
Aero Automated SATA Blu-Ray/DVD/CD Duplicator
Operating Type
Standalone Automated
Target
2, 3, 4 or 6
Max Disc Capacity
220 (2 or 3 Targets), 660 (4 or 6 Targets)
Account Management
32 users (Standard License) or 64 users (Premium License)
Partition Naming
Up to 14 Characters Per Partition
Internal Interface
SATA
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more (Chinese and Arabic can be ordered on request)
Display
20 x 2 Blue LCD
Color
Black
Featuring Recorder
12x Blu-Ray/DVD/CD Writer(s)
Hard Drive
500 GB (Capable of selecting higher capacity HDD)
Maximum Copy Speed



BD-R: 12x BD-RE: 2x
BD-R DL: 12x BD-RE DL: 2x
DVD-R: 16x DVD-RW: 6x
DVD+R: 16x DVD+RW: 8x
DVD-R DL: 8x DVD+R DL: 8x
CD-R: 40x CD-RW: 24x
Formats Supported







BD-ROM, BD-R, BD-RE
BD-R Double Layer , BD-RE Double Layer
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Power Supply
Input: 90 ~ 240 V
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital


Throughput Capacity Per Hour:
Target 2 3 4 6
 350 MB CD
 *at 40x duplication speed
38 51 60 78
 2.5 GB DVD
 *at 16x duplication speed
20 30 36 48
 12.5 GB Blu-Ray
 *at 6x duplication speed
12 18 20 30


Important Notice
  • The duplicator will not copy any copy-protected or encrypted disc(s).
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Target Disc Capacity MPN
Actual Size Single Packing Double Packing
2 220 Aero220-S2T-BD-BK Size:
W 20" x D 18" x H 15"
(50.8 x 45.7 x 38.1 cm)

Weight:
34 lbs (15.4 kg)
Size:
W 24" x D 22" x H 18"
(61 x 55.9 x 45.7 cm)

Weight:
36 lbs (16.3 kg)
Size:
W 26" x D 25" x H 21"
(66 x 63.5 x 53.3 cm)

Weight:
38 lbs (17.2 kg)
3 220 Aero220-S3T-BD-BK Size:
W 20" x D 18" x H 15"
(50.8 x 45.7 x 38.1 cm)

Weight:
38 lbs (17.2 kg)
Size:
W 24" x D 22" x H 18"
(61 x 55.9 x 45.7 cm)

Weight:
40 lbs (18.1 kg)
Size:
W 26" x D 25" x H 21"
(66 x 63.5 x 53.3 cm)

Weight:
42 lbs (19.1 kg)
4 660 Aero660-S4T-BD-BK Size:
W 22" x D 20" x H 20"
(55.9 x 50.8 x 50.8 cm)

Weight:
46 lbs (20.9 kg)
Size:
W 26" x D 24" x H 22"
(66 x 61 x 55.9 cm)

Weight:
48 lbs (21.8 kg)
Size:
W 28" x D 26" x H 25"
(71.1 x 66 x 63.5 cm)

Weight:
50 lbs (22.7 kg)
6 660 Aero660-S6T-BD-BK Size:
W 22" x D 20" x H 20"
(55.9 x 50.8 x 50.8 cm)

Weight:
50 lbs (22.7 kg)
Size:
W 26" x D 24" x H 22"
(66 x 61 x 55.9 cm)

Weight:
52 lbs (23.6 kg)
Size:
W 28" x D 26" x H 25"
(71.1 x 66 x 63.5 cm)

Weight:
54 lbs (24.5 kg)


Available Upgrade
Part Number Description
Upgrade1TB Upgrade Hard Drive from 500 GB To 1TB
Upgrade2TB Upgrade Hard Drive from 500 GB To 2 TB


Available Add-on
Item Code Item
USB-CP USB 2.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB-MFCP USB 2.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-CP USB 2.0 & eSATA with CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-MFCP USB 2.0 & eSATA with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USB3-CP USB 3.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB3-MFCP USB 3.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses


Extended Warranty for Aero 2nd Year
Part Number Description
EW2AeroBD 2nd Year Extended Warranty for Aero Blu-ray Series


Extended Warranty for Aero 2nd Year & 3rd Year
Part Number Description
EW3AeroBD 2nd & 3rd Year Extended Warranty for Aero Blu-ray Series
