Asa Case

Description

The ASA Series CD/DVD/Blu-ray duplicator tower case is a sturdy high quality low cost solution for all environments. Available in a stylish black color in various sizes for multi-drive duplication needs. The ASA Series tower case is a perfect fit for the Vinpower Digital controller.



Key Features:

  1. Sturdy metal housing for better reliability and longevity
  2. Multiple sizes: Available in 3, 5, 9, 13 & 18bay cases provides lots of flexibility in assembling both large and small duplicators.
  3. Power switch located in the front with a stylish Blue LED light display.
  4. Stylish black casing for an attractive look.
  5. Exceptional cooling fans for more effective ventilation of the drives.

Model
Asa Series Duplicator Case
Application
For stand-alone duplicator
Number of Bays
3, 5, 9, 13, or 18
Internal Hard Drive Mount
1

USB/Firewire Port
Available
Power Light Bar Indicator
Yes

Power Input
Input: 100 ~ 240V AC
Output Power Connection Types
Output: +5V DC, +12V DC

Operating Temperature
30°F ~ 100°F
Operating Humidity
10% ~ 80%
Regulation
FCC, CE, RoHS


Target MPN
 Actual Size Single Packing Double Packing

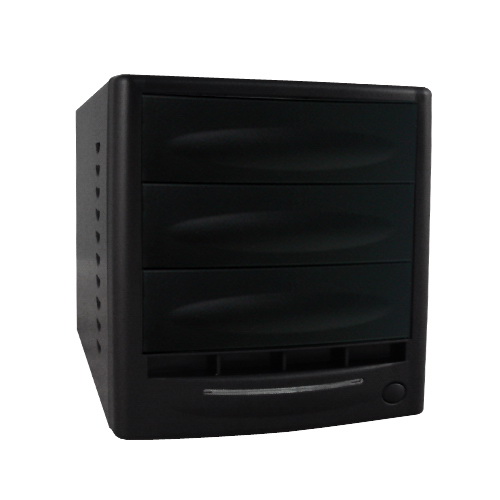

3 Bay ASA-3 Size:
W 8" x D 11" x H 8"
(20 x 28 x 20 cm)

Weight:
8 lbs (3.25 kg)
Size:
W 11" x D 15" x H 11"
(28 x 38 x 28 cm)

Weight:
9 lbs (4.04 kg)		 Size:
W 12" x D 16" x H 13"
(30 x 40 x 33 cm)

Weight:
11 lbs (4.95 kg)

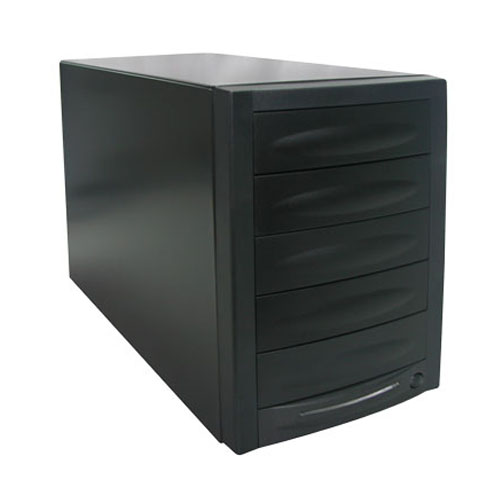

5 Bay ASA-5 Size:
W 8" x D 17" x H 14"
(20.3 x 43.2 x 35.6 cm)

Weight:
14 lbs (6.4 kg)
Size:
W 16" x D 22" x H 13"
(40.6 x 55.9 x 33 cm)

Weight:
19 lbs (8.6 kg)		 Size:
W 18" x D 24" x H 15"
(45.7 x 61 x 38.1 cm)

Weight:
25 lbs (11.4 kg)

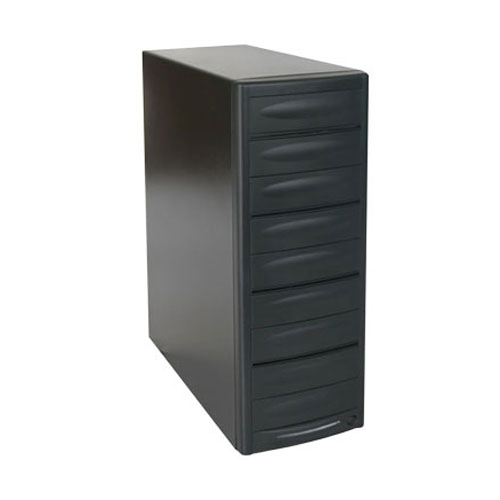

9 Bay ASA-9 Size:
W 8x D 17" x H 19"
(20.3 x 43.2 x 48.3 cm)

Weight:
18 lbs (8.2 kg) 		Size:
W 23" x D 21" x H 13"
(58.4 x 53.3 x 33 cm)

Weight:
23 lbs (10 kg)		 Size:
W 25" x D 23" x H 15"
(63.5 x 58.4 x 38.1 cm)

Weight:
30 lbs (13.6 kg)

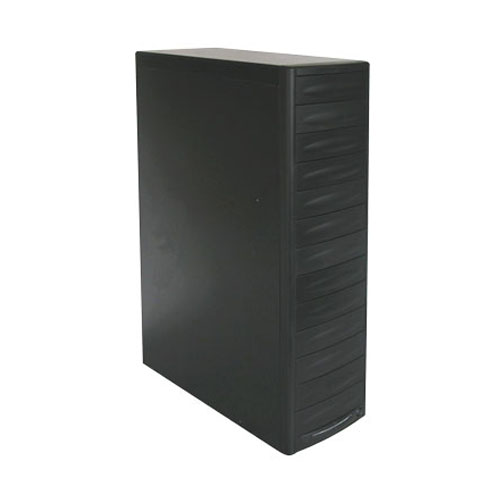

13 Bay ASA-13 Size:
W 8" x D 17" x H 24"
(20.3 x 43.2 x 61 cm)

Weight:
22 lbs (10 kg) 		Size:
W 30" x D 25" x H 15"
(76.2 x 63.5 x 38.1 cm)

Weight:
27 lbs (12.3 kg)		 Size:
W 32" x D 27" x H 17"
(81.3 x 68.6 x 43.2 cm)

Weight:
33 lbs (15 kg)

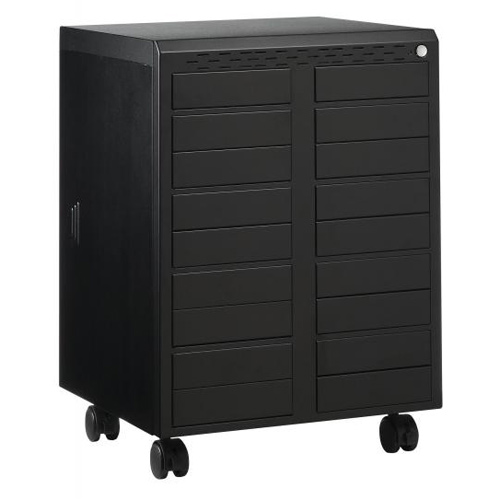

18 Bay ASA-18 Size:
W 14"x D 14" x H 21"
(36 x 36 x 53.3 cm)

Weight:
26 lbs (11.8 kg) 		Size:
W 19" x D 19" x H 25"
(48.2 x 48.2 x64 cm)

Weight:
32 lbs (14.5 kg)		 Size:
W 21" x D 21" x H 28"
(53.3 x 53.3 x 71 cm)

Weight:
40 lbs (18.2 kg)
