The Cube Blu-ray/DVD/CD Autoloader

Description

Do you have occasions where you need to make a few quick copies of a project but didn't have the time to run them through your computer or on a manual tower and didn't have the budget for the larger robotic duplicators? The Cube™ is the perfect solution. With a small manageable footprint not much larger than a shoe box, The Cube™ fits in any office or cubicle and works unattended to make 25 up to 60 copies per run. Plus at an incredibly low price point, The Cube™ fits nearly any budget. With 25 to 60 discs capacity and 1, 2, or 3 recording drives, The Cube™ gives you the ability to work on other matters with the confidence that your project will be duplicated quickly and reliably without breaking the bank. The Cube™ is small but mighty.

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Able to copy Blu-Ray discs:
    Able to duplicate Blu-Ray discs as well as DVD and CD discs.
  3. Supports all currently available Blu-ray & DVD media including Double/Dual layer:
    Can duplicate Single Layer DVD±R/RW/Blu-ray and Double/Dual Layer DVD±R/Blu-ray Formats.
  4. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  5. 25 (1 and 2 drives) or 60 (3 drives) capacity:
    Copies up to 60 discs per run.
  6. Multi-Master Recognition Technology (MMRT):
    Can load multiple masters at once to run multiple duplication jobs in succession.
  7. Disc Alignment Protection Feature:
    Automatically ejects and closes the tray when the media wasn't properly placed.
  8. Auto-Copy feature:
    System starts duplication process automatically by assuming the 1st disc in the input spindle is the master disc and remaining are the blanks.
  9. Supports Manual Duplication Mode.
  10. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  11. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.

Additional Features:

  1. Multi-Language capability for English, Spanish and French:
    The text on the LCD screen can currently be displayed in English, Spanish and French.
  2. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  3. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  4. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  5. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.'
  6. Fast Key Support:
    4 fast keys for faster operations.
  7. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  8. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  9. Selectable CD and DVD burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  10. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  11. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  12. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD, or DVD as well as the correct format to copy.
  13. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  14. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  15. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

SPECIAL FEATURES:
The Cube™ autoloader features Multi-Master Recognition Technology (MMRT). Traditionally, autoloaders can only handle one duplication job at a time and additional manpower is needed to load a new duplication job (ex. Load new master disc, insert more blank discs, etc.) Now, with this totally revolutionized auto-master recognition technology, the Cube™ can handle multiple duplication jobs per run by itself. For example, if you want to make 2 copies of job A, 4 copies of job B, and 3 copies of job C. Traditional autoloaders will only process one job per run and need someone to load job B and job C to the autoloader. However, with the Cube™ featuring MMRT, it will process all three jobs sequentially per run by itself, without the need to load and reload additional master disc. This process affords the user more time to dedicate to other matters rather than keeping a constant eye on the autoloader.

Model
The Cube™ Automated SATA Blu-Ray/DVD/CD Duplicator
Operating Type
Stand-alone Automated
Target
1, 2, or 3
Max Disc Capacity
25 (1 and 2 drives) or 60 (3 drives)
Account Management
32 users (Standard License) or 64 users (Premium License)
Partition Naming
Up to 14 Characters Per Partition
Internal Interface
SATA
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more (Chinese and Arabic can be ordered on request)
Display
20 x 2 Blue LCD
Featuring Recorder
12x SATA Blu-ray/DVD/CD Writer(s)
Hard Drive
500GB (Higher Capacity HDD is Available)
Maximum Copy Speed
BD-R: 12x BD-RE: 2x
BD-R DL: 12x BD-RE DL: 2x
DVD-R: 16x DVD-RW: 6x
DVD+R: 16x DVD+RW: 8x
DVD-R DL: 8x DVD+R DL: 8x
CD-R: 40x CD-RW: 24x
Formats Supported












BD-ROM, BD-R, BD-RE
BD-R Double Layer, BD-RE Double Layer
DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Power Supply
Input: 90 ~ 240 V
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL, CB
Manufacture
Vinpower Digital




Throughput Capacity Per Hour:
Target 123
 350 MB CD
 *at 48x duplication speed
21 38 51
 2.5 GB DVD
 *at 16x duplication speed
11 20 30
 12.5 GB Blu-Ray
 *at 8x duplication speed
6 12 18


Important Notice
  • The duplicator will not copy any copy-protected discs.
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Target Disc Capacity MPN
Actual Size Single Packing Double Packing

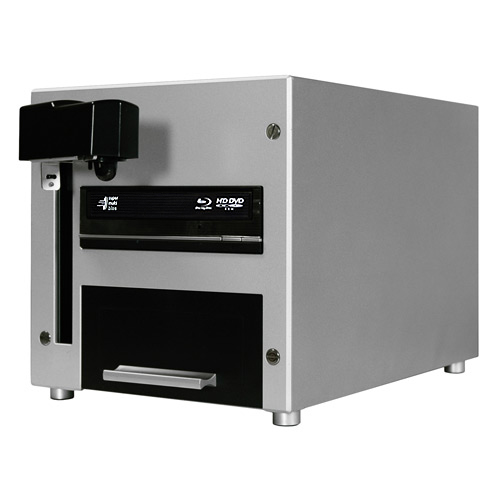

1 25 CUB25-S1T-BD Size:
W 8.75" x D 16" x H 9 "
(22.2 x 40.6 x 22.9 cm)

Weight:
19 lbs (8.63 kg)
Size:
W 13" x D 20" x H 14"
(33 x 50.8 x 35.6 cm)

Weight:
22 lbs (10 kg)
Size:
W 15" x D 23" x H 14"
(38.1 x 58.4 x 35.6 cm)

Weight:
25 lbs (11.4 kg)
2 25 CUB25-S2T-BD Size:
W 8.75" x D 16" x H 10.5"
(22.2 x 40.6 x 26.7 cm)

Weight:
21 lbs (9.53 kg)
Size:
W 13" x D 20" x H 15"
(33 x 50.8 x 38.1 cm)

Weight:
24 lbs (10.90 kg)
Size:
W 15" x D 23" x H 18"
(38.1 x 58.4 x 45.7 cm)

Weight:
26 lbs (11.8 kg)

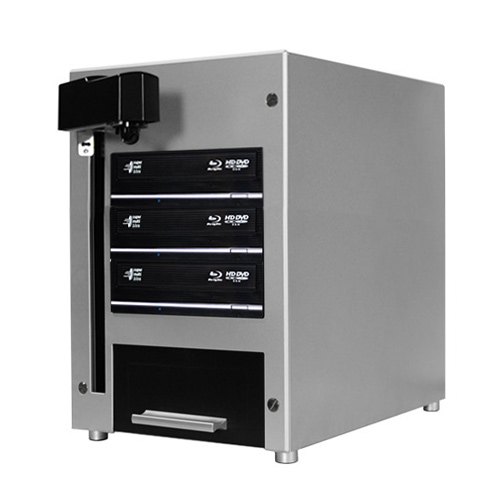

3 60 CUB60-S3T-BD Size:
W 8.5" x D 16" x H 14 "
(21.6 x 40.64 x 35.56 cm)

Weight:
25 lbs (11.34 kg)
Size:
W 12" x D 20.75" x H 18.5"
(30.48 x 52.71 x 47 cm)

Weight:
28 lbs (12.70 kg)
Size:
W 14.63" x D 22.5" x H 21.5"
(37.16 x 57.15 x 54.61 cm)

Weight:
32 lbs (14.51 kg)


Available Upgrade
Part Number Description
Upgrade1TB Upgrade Hard Drive from 500GB To 1TB
Upgrade2TB Upgrade Hard Drive from 500GB To 2TB


Available Add-on*
Item Code Item
USB-CP USB 2.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB-MFCP USB 2.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-CP USB 2.0 & eSATA with CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-MFCP USB 2.0 & eSATA with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USB3-CP USB 3.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB3-MFCP USB 3.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses


*This option only available on The Cube 3 Targets

Extended Warranty for The Cube 2nd Year
Part Number Description
EW2CubeBD 2nd Year Extended Warranty for The Cube Blu-ray Series


Extended Warranty for The Cube 2nd Year & 3rd Year
Part Number Description
EW3CubeBD 2nd & 3rd Year Extended Warranty for The Cube Blu-ray Series
