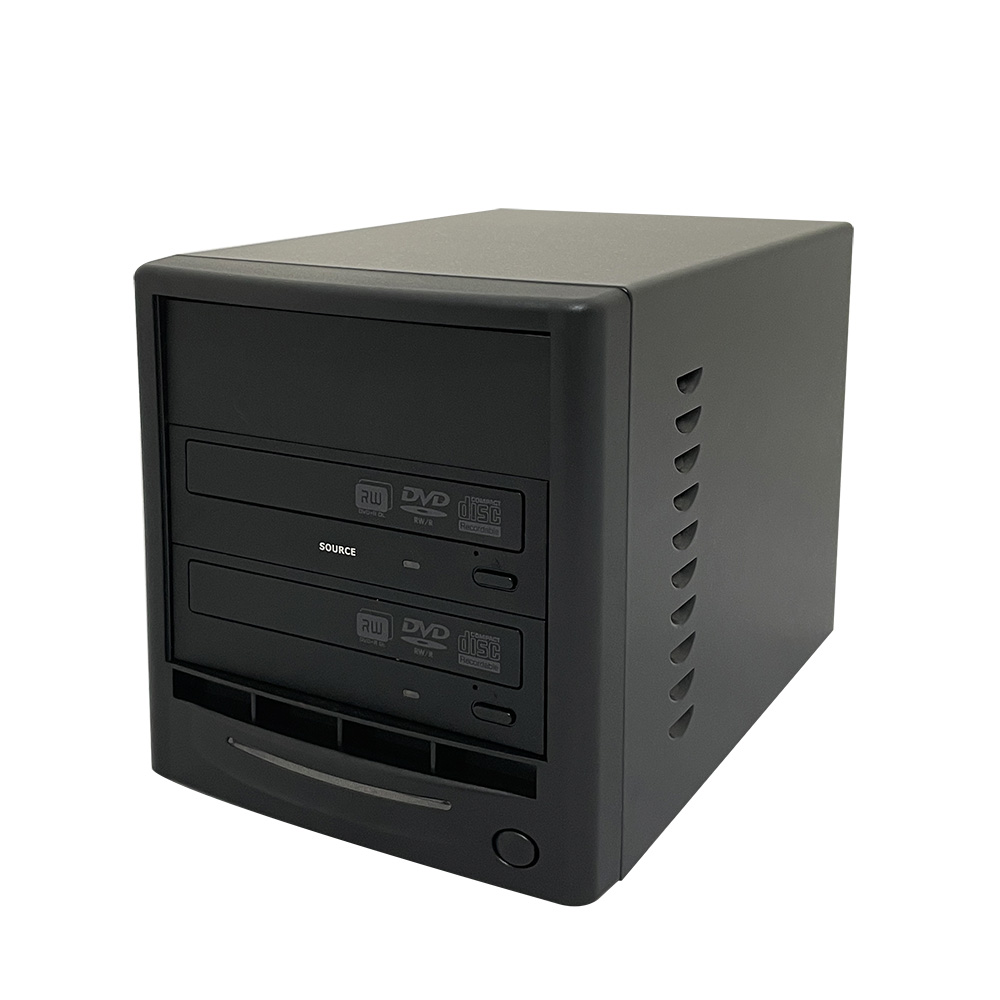

Econ Series AutoDupe DVD CD Duplicator


The AutoDupe model is a standalone SATA DVD/CD duplicator that doesn’t require the user to push any buttons to start the copy process. The user simply inserts the master disc they want to copy from into the top tray and the blank disc into the bottom tray. Once the disc trays close the AutoDupe system will start the duplication process automatically. It’s extremely easy to use and once the disc is successfully copied, the finished disc tray will eject and the user can remove it and insert a new disc to keep copying. The AutoDupe model is not only easy to use, but has a very low cost, offering truly reliable duplication an affordable price, with an easy to use interface.

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. AutoDupe feature:
    Fast duplication without pressing any buttons.
  3. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  4. Supports all common CD Formats with Additional Special format including CD-TEXT, Over-Burned CD.
  5. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
Additional Features:

  1. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  2. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  3. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  4. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  5. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  6. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

Econ AutoDupe SATA DVD/CD Tower Duplicator
Operating Type
Internal Interface
Featuring Reader
Vinpower DVD-ROM
Featuring Recorder
24x SATA Drive DVD/CD Writer
Maximum Write Speed
DVD-R: 24x DVD-RW: 6x
DVD+R: 24x DVD+RW: 8x
DVD-R DL: 12x DVD+R DL: 12x
CD-R: 48x CD-RW: 32x
Formats Supported
DVD-ROM, DVD-Video, DVD-Audio Video CD, CD-I, Karaoke CD(VCD)
DVD-R, DVD-RW, DVD+R, DVD+RW Photo CD (Single & Multi-session)
DVD+R Double Layer, DVD-R Dual Layer CD-Extra, HFS, CD-Bridge
CD-ROM (Mode1 & Mode2) ISO9660, CD-R, CD-RW
CD-ROM/XA (Mode2 form1 & form2) Business Card CD-R, 3" Mini CD-R
CD-DA, Mixed-Mode
Firmware Upgradeable
Burn Proof Support
Power Supply
Input : 90 ~ 240 V, Up to 500 WATT max
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Vinpower Digital

Important Notice
  • The duplicator will not copy any copy-protected or encrypted disc(s).
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Throughput Capacity Per Hour:
Target 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
 350 MB CD
 *at 40x duplication speed
24 48 72 96 120 144 168 192 216 240 264 288 312 336 360
 2.5 GB DVD
 *at 16x duplication speed
12 24 36 48 60 72 84 96 108 120 132 144 156 168 180

Target MPN Actual Size Single Packing Double Packing
1 to 1 Econ-S1T-DVD-BK-NL Size:
W 7" x D 11" x H 8"
(18 x 28 x 20 cm)

10.5 lbs (5 kg)
W 12" x D 15" x H 11"
(30.5 x 38 x 28 cm)

13 lbs (6 kg)
W 16" x D 12" x H 13"
(41 x 30.5 x 33 cm)

14 lbs (6.4 kg)
