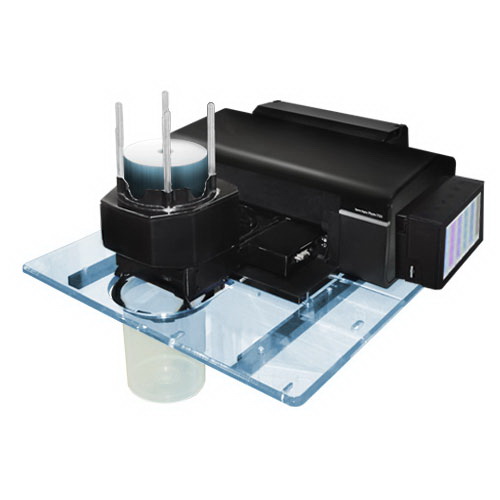

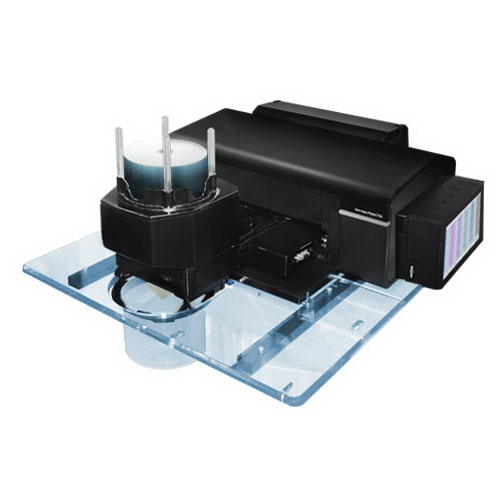

Pandora CIS AutoPrinter Series - 50 / 100 Disc Capacity
Description
The Pandora auto-printer with the continuous ink system (CIS) has the ability to print as many discs as needed without worrying about running out of ink. Plus, the fact that the Pandora CIS printer can be refilled as opposed to buying new ink cartridges, equals incredible savings over non CIS printers. It can print directly onto CDs, DVDs and Blu-ray discs using our 6 color printing technology achieving stunning photo-quality images on standard and glossy media. With its simple design and reliable automation, you can leave the system unattended while it produces the exact number of vibrantly printed discs requested. The Pandora achieves all this at a very low manageable price point making it the perfect solution for your CD, DVD, and Blu-ray printing needs.
Key Features:
- Large Disc Capacity with disc capacity up to 50* to 100* disc
- Continuous Ink System, providing a lower per item printing cost
- Hands Free Automated CD, DVD, and BD (Blu-ray) Disc Printing
- Strong Resolution with color inkjet printing at up to 5760 dpi
- Software includes: Printing Software compatible with Windows® 7 (32 Bit, 64 Bit), Windows Vista® (32 Bit, 64 Bit), Windows XP (32 Bit, 64 Bit)
- Ultra Hi-Definition prints with Claria® 6-color inks, for images with richness, depth and clarity.
- Individual ink cartridges that lower per print cost by replacing only the color(s) needed
Model
PDAL80-50 / PDAL80-100
Disc Capacity
50 discs / 100 discs
Print Method
Inkjet
Ink Palette
Black, Cyan, Light Cyan, Magenta, Light Magenta, and Yellow
Ink Cartridge
Configuration
Configuration
6 individual ink cartridges
Ink Type
Genuine Ink Bottle
Maximum Resolution
(dots per inch)
(dots per inch)
5760x1440 dpi (with Variable S-zes Droplet Technology)
Min. Ink Droplet size
1.5pl
Media Type
Standard 120mm Inkjet Printable-surface Blu-rays,
CDs and DVDs; standard, Glossy, or water-resistant
CDs and DVDs; standard, Glossy, or water-resistant
Maximum Print Width
4.724" (120mm)
Minimum System
Requirements for PC
Requirements for PC
CPU: Pentium 4, 2.4GHz; RAM: 512MB; 3 x Hi-Speed USB 2.0
Operating Systems
Windows® 7 (32-bit, 64-bit), Windows Vista® (32-bit, 64-bit), Windows XP SP1 or higher (32-bit), Windows XP Professional x64 Edition. Mac OS is not supported.
Software Included
Printer driver,
Disc Design Software,
Pandora Auto-Printer Software
Disc Design Software,
Pandora Auto-Printer Software
Warranty
*1 year parts & labor against manufacturer defect. Warranty excludes physical damage or defect due to neglect or deliberate damage caused by the user.
**Warranty is specific to the loading mechanism only. The disc tray is a non-warranted consumable item. Replacement disc trays are available for purchase if needed.
***The support and warranty on the Printer is covered through the printer manufacturer and the user should contact that company directly.
**Warranty is specific to the loading mechanism only. The disc tray is a non-warranted consumable item. Replacement disc trays are available for purchase if needed.
***The support and warranty on the Printer is covered through the printer manufacturer and the user should contact that company directly.
Power Requirements
Rated voltage: 120 VAC
Rated frequency: 50 – 60 Hz
Rated current: 0.6 Amp
Rated frequency: 50 – 60 Hz
Rated current: 0.6 Amp
Weight and Dimensions
(W x D x H)
(W x D x H)
Dimension: 21 x 23.25 x 8.25 inches
(16.75" H with input rods and output bin installed)
Weight: 25 lb
(16.75" H with input rods and output bin installed)
Weight: 25 lb
Temperature
Operating: 50 ° to 95 °F(10 ° to 35 °C)
Storage: -4 ° to 140 °F (-20 ° to 60 °C)
Storage: -4 ° to 140 °F (-20 ° to 60 °C)
Relative Humidity
Operating: 20 - 80%
Storage: 5 - 85%
Storage: 5 - 85%
Safety Approvals
Safety standards UL60950-1, CSA C22.2 No. 60950-1
EMI FCC Part 15 subpart B class B
CAN/CSA-CEI/IEC CISPR 22 class B
EMI FCC Part 15 subpart B class B
CAN/CSA-CEI/IEC CISPR 22 class B
| Disc Capacity | MPN |
Actual Size | Package |
| 50 | PDAL80-50 |
Dimension (W x D x H): 21 x 23.25 x 8.25 inches
(16.75" H with input rods and output bin installed) Weight: 25 lbs |
Printer: Dimension (W x D x H): 25.5 x 16 x 12 inches Weight: 20 lbs Autoloader: Dimension (W x D x H): 23.5 x 14.5 x 13.5 inches Weight: 19 lbs |
| 100 | PDAL80-100 | Dimension (W x D x H): 21 x 23.25 x 8.25 inches
(16.75" H with input rods and output bin installed) Weight: 25 lbs |
Printer: Dimension (W x D x H): 25.5 x 16 x 12 inches Weight: 20 lbs Autoloader: Dimension (W x D x H): 23.5 x 14.5 x 13.5 inches Weight: 19 lbs |
| Model |
Description |
| PDAL80(T6735) | Pandora PDAL80-50 and PDAL80-100 LIGHT CYAN Refill Ink |
| PDAL80(T6732) | Pandora PDAL80-50 and PDAL80-100 CYAN Refill Ink |
| PDAL80(T6736) | Pandora PDAL80-50 and PDAL80-100 LIGHT MAGENTA Refill Ink |
| PDAL80(T6733) | Pandora PDAL80-50 and PDAL80-100 MAGENTA Refill Ink |
| PDAL80(T6734) | Pandora PDAL80-50 and PDAL80-100 YELLOW Refill Ink |
| PDAL80(T6731) | Pandora PDAL80-50 and PDAL80-100 BLACK Refill Ink |
