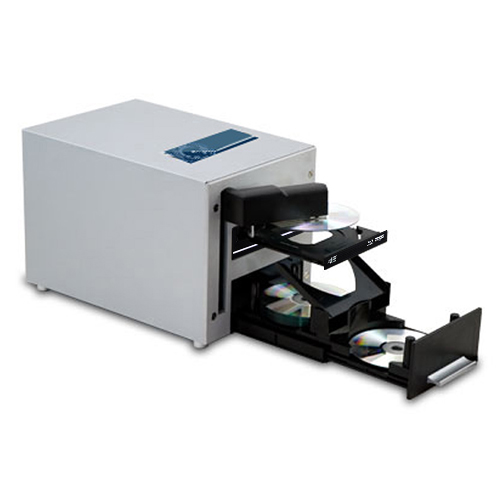

RipBox Blu-ray / DVD / CD Ripping Station with Software


Vinpower Digital introduces the RipBox Optical Disc (CD, DVD, and Blu-ray) copy and ripping stations based on the Cube series duplicators. The RipBox units are automated systems with a robotic transport arm that connects to a computer via USB. They can be operated through various software applications like Vinpower’s BPR 2000 Lite, a third party freeware (i.e. ImgBurn), or even through the users own proprietary operation software that can be adapted to control the RipBox units through an SDK with Vinpower.

Now able to rip audio CD’s including the original disc metadata.  With the RipBox, you can digitize your full original CD collection to make a perfect back-up with the artists name, song title, album name, and so much more.  In addition, you can rip the audio content to a variety of formats, including the popular .mp3 as well as the lossless audio files, .wav, and flac, plus many others.  Now you can back up all of your old CD’s and your new ones as well and keep a complete library available anytime you want.

Basic Operations:

  1. Flexible operation modes:
    Works as an automated duplicator.

System Advantages:

  1. Automated Robotic Operation:
    System runs duplication through a robotic interface allowing for hands free lights-out operation.
  2. Copy Protection Capable:
    Optional feature available to provide DVD video copy protection to greatly diminish the ability for unauthorized duplication and ripping proprietary content

Ripping Support:

  1. Provides Data Ripping:
    All files and folder structure is cloned to your hard drive
  2. Supports Audio Ripping:
    Able to rip music files onto a PC hard drive
  3. Supports Archival Back-up:
    Capable of operating as an archival rip station for important back-up of content onto optical discs or from discs onto a server or HDD
  4. Provides Disc Image Ripping:
    Discs are cloned to your hard drive/servers as Disc Image file(s). It reduces the file cluster greatly and provides simplified archival solution.
  5. Supports Job Queues:
    Provides the ability to queue multiple jobs for unattended operation of multiple different duplication and or printing assignments
  6. Supports Multiple Job Queues:
    System is able to maintain multiple job queues for several users so that each individual user can maintain their own dupe and print files for use at a later date
  7. Multi-master read-in support:
    Users can read-in a stack of masters and create ISO images

Software Features:

  1. Provided Publishing Software:
    The unit comes standard with the ImgBurn software (which can also be obtained freely from, or is available with the more powerful optional BPR2000 Lite software which supports the broadest set of features and capabilities.
  2. Third Party Software Support (Optional):
    RipBox hardware can be controlled through many third party software’s for added convenience and ease of use.
  3. Software update Available:
    Able to update proprietary software and firmware for future functionality
  4. Extensive Log File:
    Maintains an extensive log file of the systems operations for easier troubleshooting if needed ( All jobs are auto logged)
  5. System error notification:
    System will email listed users notifications when jobs have been completed or to report any potential error conditions that may arise
Robotics Operation:

  1. Hi-speed 24/7 operation:
    Able to perform constantly 24 hours a day, 7 days a week without fear of overheating with quick reliable robotic operation.
  2. Friendly Interface:
    All job functions and system alerts operate in an easy to use and similar user interface for convenience and ease of use

  *Specifications available for each model depend on the software feature chosen to operate the equipment. Not all features are available using the ImgBurn freeware.
**The RipBox will not rip any copy-protected or encrypted disc(s).

Model Type
Automatic ripping station
Max Disc Capacity
Number of Recorder

Software Included
BPR2000 Lite Burning Software
PC Interface
USB 2.0/1.1
PC System Requirement

1GHz Processor Processor or better
512MB RAM or higher for better performance
Windows XP, Vista, 7 (32 or 64Bit)
2 USB 2.0 Port
Administrator privilege required
Featuring Recorder
14x SATA Blu-ray/DVD/CD Writer
Maximum Copy Speed

BD-R: 14x BD-R DL: 12x
BD-RE: 2x BD-RE DL: 2x
DVD-R: 16x DVD-RW: 6x
DVD+R: 16x DVD+RW: 8x
DVD-R DL: 8x DVD+R DL: 8x
CD-R: 48x CD-RW: 24x
Formats Supported

BD-R Double Layer, BD-RE Double Layer
DVD-ROM, DVD-Video, DVD-Audio
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Power Supply
Input: 90 ~ 240 V
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Vinpower Digital

Target Disc Capacity MPN
Actual Size Single Packing Double Packing
1 25 RipBox25-S1T-BDSW Size:
W 8.75" x D 16" x H 9 "
(22.2 x 40.6 x 22.9 cm)

17 lbs (7.71 kg)
W 13" x D 20" x H 14"
(33 x 50.8 x 35.6 cm)

20 lbs (9.07 kg)
W 15" x D 23" x H 14"
(38.1 x 58.4 x 35.6 cm)

23 lbs (10.43 kg)
