RipBox DVD / CD Ripping Station with Software

Description

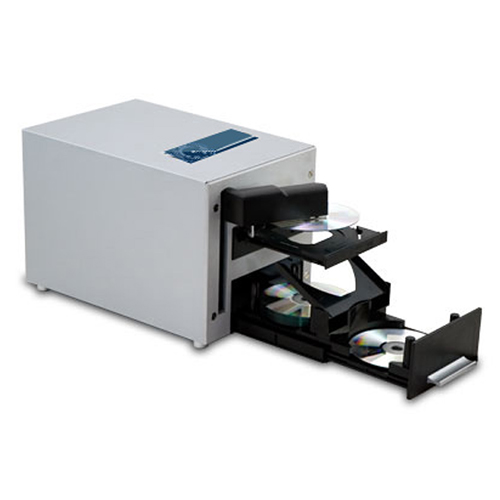

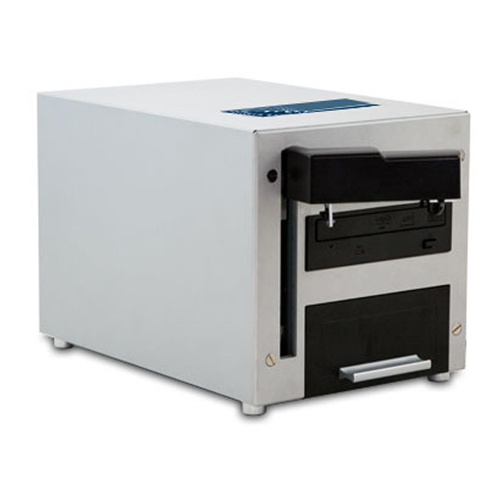

Vinpower Digital introduces the RipBox Optical Disc (CD, DVD) copy and ripping stations based on the Cube series duplicators. The RipBox units are automated systems with a robotic transport arm that connects to a computer via USB. They can be operated through various software applications like Vinpower’s BPR 2000 Lite, a third party freeware (i.e. ImgBurn), or even through the users own proprietary operation software that can be adapted to controller the RipBox units through an SDK with Vinpower.

Basic Operations:

  1. Flexible operation modes:
    Works as an automated duplicator.

System Advantages:

  1. Automated Robotic Operation:
    System runs duplication through a robotic interface allowing for hands free lights-out operation.
  2. Copy Protection Capable:
    Optional feature available to provide DVD video copy protection to greatly diminish the ability for unauthorized duplication and ripping proprietary content

Ripping Support:

  1. Provides Data Ripping:
    All files and folder structure is cloned to your hard drive
  2. Supports Audio Ripping:
    Able to rip music files onto a PC hard drive
  3. Supports Archival Back-up:
  4. Provides Disc Image Ripping:
    Discs are cloned to your hard drive/servers as Disc Image file(s). It reduces the file cluster greatly and provides simplified archival solution.
  5. Supports Job Queues:
    Provides the ability to queue multiple jobs for unattended operation of multiple different duplication and or printing assignments
  6. Supports Multiple Job Queues:
    System is able to maintain multiple job queues for several users so that each individual user can maintain their own dupe and print files for use at a later date
  7. Multi-master read-in support:
    Users can read-in a stack of masters and create ISO images

Software Features:

  1. Provided Publishing Software:
    The unit comes standard with the ImgBurn software (which can also be obtained freely from http://www.imgburn.com), or is available with the more powerful optional BPR2000 Lite software which supports the broadest set of features and capabilities.
  2. Third Party Software Support (Optional):
    RipBox hardware can be controlled through many third party software’s for added convenience and ease of use.
  3. Software update Available:
    Able to update proprietary software and firmware for future functionality
  4. Extensive Log File:
    Maintains an extensive log file of the systems operations for easier troubleshooting if needed ( All jobs are auto logged)
  5. System error notification:
    System will email listed users notifications when jobs have been completed or to report any potential error conditions that may arise
Robotics Operation:

  1. Hi-speed 24/7 operation:
    Able to perform constantly 24 hours a day, 7 days a week without fear of overheating with quick reliable robotic operation.
  2. Friendly Interface:
    All job functions and system alerts operate in an easy to use and similar user interface for convenience and ease of use


  *Specifications available for each model depend on the software feature chosen to operate the equipment. Not all features are available using the ImgBurn freeware.
**The RipBox will not rip any copy-protected or encrypted disc(s).

Model
RipBox25-S1T-SW
Model Type
Automatic ripping station
Max Disc Capacity
25
Number of Recorder
Drive
1


Software Included
BPR2000 Lite Burning Software
PC Interface
USB 2.0/1.1
PC System Requirement




1GHz Processor Processor or better
512MB RAM or higher for better performance
Windows XP, Vista, 7 (32 or 64Bit)
2 USB 2.0 Port
Administrator privilege required
Featuring Recorder
24x DVD/CD Writer
Maximum Copy Speed



DVD-R: 24x DVD-RW: 6x
DVD+R: 24x DVD+RW: 8x
DVD-R DL: 12x DVD+R DL: 8x
CD-R: 48x CD-RW: 32x
Formats Supported










DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Power Supply
Input: 90 ~ 240 V
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL, CB
Manufacture
Vinpower Digital


Target Disc Capacity MPN
Actual Size Single Packing Double Packing
1 25 RipBox25-S1T-SW Size:
W 8.75" x D 16" x H 9 "
(22.2 x 40.6 x 22.9 cm)

Weight:
17 lbs (7.71 kg)
Size:
W 13" x D 20" x H 14"
(33 x 50.8 x 35.6 cm)

Weight:
20 lbs (9.07 kg)
Size:
W 15" x D 23" x H 14"
(38.1 x 58.4 x 35.6 cm)

Weight:
23 lbs (10.43 kg)
