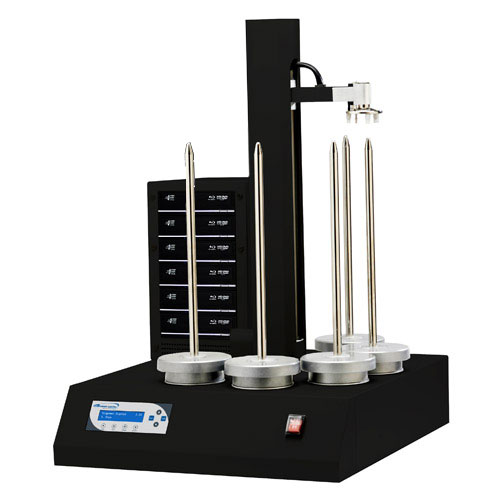

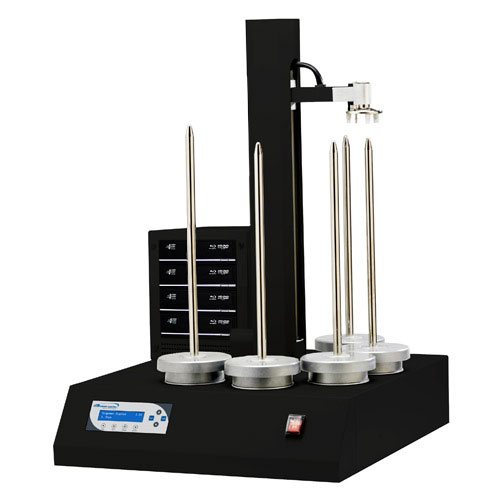

Titan Supreme Blu-ray/DVD/CD Automated Duplicator

Description

When your business requires the added edge in overnight continuous duplication with the highest degree of reliability and functionality, the TITAN SUPREME is the answer. This unit is the most robust in our line of autoloaders and is specially designed to perform under the most grueling of continuous duplication conditions. With a revamped robotic arm and spindles that never need to be realigned, the autoloader will provide years of faithful continuous operation. The Supreme offers all the exceptional abilities of our TITAN series with a more modular design for easier hardware upgradeability and maintenance in the future. Meaning, any upgrades, modifications, or repairs can be performed quickly and easily so that the unit is back in production with minimal downtime.

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Able to copy Blu-Ray discs:
    Able to duplicate Blu-Ray discs as well as DVD and CD discs.
  3. Supports all currently available Blu-ray & DVD media including Double/Dual layer:
    Can duplicate Single Layer DVD±R/RW/Blu-ray and Double/Dual Layer DVD±R/Blu-ray Formats.
  4. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  5. Multi-Master Recognition Technology (MMRT):
    Can load multiple masters at once to run multiple duplication jobs in succession. In addition able to load the master content to HDD while copying first run of discs.
  6. Upgraded sticky media separator & handling option:
    Higher probability to separate sticky media. Provides additional setting "Detect Sticky Media" to stop the job when 2 or more media are detected in any tray.
  7. Support automatically writer disable feature when specified "Maximum Failures/Per Recorder" is reached.
  8. Support automatically job abort feature when specified "Maximum Total Failures" is reached
  9. Support automatically eject and close the tray when the media wasn't properly placed.
  10. Auto-Copy feature:
    System starts duplication process automatically by assuming the 1st disc in the input spindle is the master disc and remaining are the blanks.
  11. Supports Manual Duplication Mode.
  12. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  13. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.

Additional Features:

  1. Multi-Language capability for English, Spanish and French:
    The text on the LCD screen can currently be displayed in English, Spanish and French.
  2. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  3. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  4. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  5. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.'
  6. Fast Key Support:
    4 fast keys for faster operations.
  7. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  8. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  9. Selectable CD and DVD burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  10. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  11. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  12. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD, or DVD as well as the correct format to copy.
  13. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  14. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  15. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

SPECIAL FEATURES:
The TITAN SUPREME™ autoloader features Multi-Master Recognition Technology (MMRT). Traditionally, autoloaders can only handle one duplication job at a time and additional manpower is needed to load a new duplication job (ex. Load new master disc, insert more blank discs, etc.) Now, with this totally revolutionized auto-master recognition technology, the TITAN SUPREME™ can handle multiple duplication jobs per run by itself. For example, if you want to make 200 copies of job A, 50 copies of job B, and 100 copies of job C. Traditional autoloaders will only process one job per run and need someone to load job B and job C to the autoloader. However, with the TITAN SUPREME™ featuring MMRT, it will process all three jobs sequentially per run by itself, without the need to load and reload additional master disc. This process affords the user more time to dedicate to other matters rather than keeping a constant eye on the autoloader.

Model
Titan Supreme™ Automated SATA Blu-Ray/DVD/CD Duplicator
Operating Type
Stand-alone Automated
Target
4, 6 or 8
Max Disc Capacity
1000
Account Management
32 users (Standard License) or 64 users (Premium License)
Partition Naming
Up to 14 Characters Per Partition
Internal Interface
SATA
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more (Chinese and Arabic can be ordered on request)
Display
20 x 2 Blue LCD
Color
Black
Featuring Recorder
12x SATA Blu-ray/DVD/CD Writer(s)
Hard Drive
500 GB (Higher Capacity HDD is Available)
Maximum Copy Speed





BD-R: 12x BD-RE: 2x
BD-R DL: 12x BD-RE DL: 2x
DVD-R: 16x DVD-RW: 6x
DVD+R: 16x DVD+RW: 8x
DVD-R DL: 8x DVD+R DL: 8x
CD-R: 40x CD-RW: 24x
Formats Supported









BD-ROM, BD-R, BD-RE
BD-R Double Layer , BD-RE Double Layer
DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Power Supply
Input: 90 ~ 240 V
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital


Throughput Capacity Per Hour:
Target 4 6 8
 350 MB CD
 *at 40x duplication speed
60 78 88
 2.5 GB DVD
 *at 16x duplication speed
36 48 56
 12.5 GB Blu-Ray
 *at 6x duplication speed
16 24 32


Important Notice
  • The duplicator will not copy any copy-protected or encrypted disc(s).
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Target Disc Capacity MPN
Actual Size Single Packing
4 1000 SUP1000-S4T-BD-BK Size:
W 20" x D 26" x H 29"
(51 x 66 x 73.5 cm)

Weight:
90 lbs (41 kg)
Size:
W 25" x D 29" x H 34"
(63.5 x 73.5 x 86.5 cm)

Weight:
105 lbs (47.7 kg)
6 1000 SUP1000-S6T-BD-BK Size:
W 20" x D 26" x H 29"
(51 x 66 x 73.5 cm)

Weight:
95 lbs (43 kg)
Size:
W 25" x D 29" x H 34"
(63.5 x 73.5 x 86.5 cm)

Weight:
110 lbs (50 kg)
8 1000 SUP1000-S8T-BD-BK Size:
W 20" x D 26" x H 29"
(51 x 66 x 73.5 cm)

Weight:
100 lbs (45.5 kg)
Size:
W 25" x D 29" x H 34"
(63.5 x 73.5 x 86.5 cm)

Weight:
115 lbs (52.3 kg)


Available Upgrade
Part Number Description
Upgrade1TB Upgrade Hard Drive from 500 GB To 1TB
Upgrade2TB Upgrade Hard Drive from 500 GB To 2TB


Available Add-on*
Item Code Item
USB-CP USB 2.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB-MFCP USB 2.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-CP USB 2.0 & eSATA with CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-MFCP USB 2.0 & eSATA with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USB3-CP USB 3.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB3-MFCP USB 3.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses

*This option only available on Titan Supreme 8 Targets

Extended Warranty for Titan Supreme 2nd Year
Part Number Description
EW2SupBD 2nd Year Extended Warranty for Titan Supreme Blu-ray Series


Extended Warranty for Titan Supreme 2nd Year & 3rd Year
Part Number Description
EW3SupBD 2nd & 3rd Year Extended Warranty for Titan Supreme Blu-ray Series
