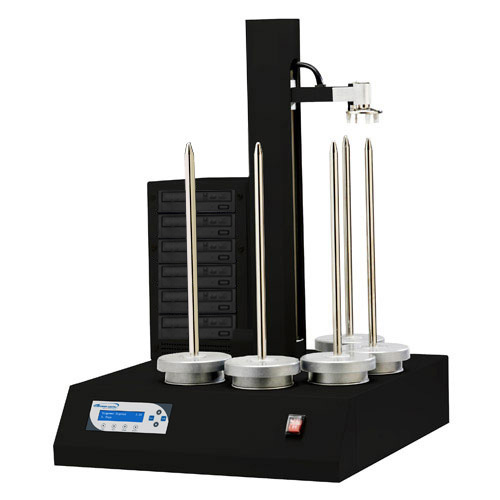

Titan Supreme DVD/CD Automated Duplicator

Description

When your business requires the added edge in overnight continuous duplication with the highest degree of reliability and functionality, the TITAN SUPREME is the answer. This unit is the most robust in our line of autoloaders and is specially designed to perform under the most grueling of continuous duplication conditions. With a revamped robotic arm and spindles that never need to be realigned, the autoloader will provide years of faithful continuous operation. The Supreme offers all the exceptional abilities of our TITAN series with a more modular design for easier hardware upgradeability and maintenance in the future. Meaning, any upgrades, modifications, or repairs can be performed quickly and easily so that the unit is back in production with minimal downtime.

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Multi-Master Recognition Technology (MMRT):
    Can load multiple masters at once to run multiple duplication jobs in succession. In addition able to load the master content to HDD while copying first run of discs.
  3. Upgraded sticky media separator & handling option:
    Higher probability to separate sticky media. Provides additional setting "Detect Sticky Media" to stop the job when 2 or more media are detected in any tray.
  4. Support automatically writer disable feature when specified "Maximum Failures/Per Recorder" is reached.
  5. Support automatically job abort feature when specified "Maximum Total Failures" is reached
  6. Support automatically eject and close the tray when the media wasn't properly placed.
  7. Auto-Copy feature:
    System starts duplication process automatically by assuming the 1st disc in the input spindle is the master disc and remaining are the blanks.
  8. Supports Manual Duplication Mode.
  9. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  10. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  11. DVD+R DL Overburn:
    Can extend the listed capacity from 8.5GB up to 8.7GB to allow the user to capture more content on a single DVD+R DL disc.

Additional Features:

  1. Multi-Language capability for English, Spanish and French:
    The text on the LCD screen can currently be displayed in English, Spanish and French.
  2. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  3. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  4. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  5. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.'
  6. Fast Key Support:
    4 fast keys for faster operations.
  7. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  8. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  9. Selectable CD and DVD burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  10. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  11. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  12. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD, or DVD as well as the correct format to copy.
  13. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  14. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  15. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

SPECIAL FEATURES:
The TITAN SUPREME™ autoloader features Multi-Master Recognition Technology (MMRT). Traditionally, autoloaders can only handle one duplication job at a time and additional manpower is needed to load a new duplication job (ex. Load new master disc, insert more blank discs, etc.) Now, with this totally revolutionized auto-master recognition technology, the TITAN SUPREME™ can handle multiple duplication jobs per run by itself. For example, if you want to make 200 copies of job A, 50 copies of job B, and 100 copies of job C. Traditional autoloaders will only process one job per run and need someone to load job B and job C to the autoloader. However, with the TITAN SUPREME™ featuring MMRT, it will process all three jobs sequentially per run by itself, without the need to load and reload additional master disc. This process affords the user more time to dedicate to other matters rather than keeping a constant eye on the autoloader.

Model
Titan Supreme™ Automated SATA DVD/CD Duplicator
Operating Type
Stand-alone Automated
Target
4, 6 or 8
Max Disc Capacity
1000
Account Management
32 users (Standard License) or 64 users (Premium License)
Partition Naming
Up to 14 Characters Per Partition
Internal Interface
SATA
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more (Chinese and Arabic can be ordered on request)
Display
20 x 2 Green LCD
Color
Black
Featuring Recorder
24x DVD/CD Writer(s)
Hard Drive
500 GB
Maximum Copy Speed



DVD-R: 24x DVD-RW: 6x
DVD+R: 24x DVD+RW: 8x
DVD-R DL: 12x DVD+R DL: 12x
CD-R: 48x CD-RW: 32x
Formats Supported







DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Power Supply
Input: 90 ~ 240 V
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital


Throughput Capacity Per Hour:
Target 4 6 8
 350 MB CD
 *at 40x duplication speed
60 78 88
 2.5 GB DVD
 *at 16x duplication speed
36 48 56


Important Notice
  • The duplicator will not copy any copy-protected or encrypted disc(s).
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Vinpower Digital has developed the first true standalone duplicator which can offer embedded copy protection. The unique Copy Protection Software (CPS) can embed a proprietary copy protection encryption into any DVD video master through a PC which can then be transferred onto the Vinpower Digital duplicator to produce as many copy protected reproductions as the user needs. Since CPS is software based as apposed to hardware based, there are no issues with compatibility with players like similar models on the market. In addition, CPS protects against both duplication and ripping for a double dose of protection whereas similar applications from competitors cannot block ripping.

In today’s savvy hi-tech world, consumers are often purchasing a single video and making copies for their friends which limit the overall sales. If you worked hard and put in a lot of effort and expense into creating your video project, you shouldn’t be restricted in the number of units you can sell because you can’t afford the high price of replicated copy protection. Instead by using Vinpower Digital’s CPS, you can feel secure at a fraction of the expense and time with no minimum or maximum quantities required.

How Copy Protection Works:
1. Load the supplied CPS software onto a suitable PC.
2. Plug in the CPS USB dongle with activated licenses into your PC’s USB socket.
3. Take your DVD video master disc or file and by utilizing the special CPS application, follow the steps to embed the copy protection onto the master content.
4. Transfer the new copy protected master content from the PC onto an enabled duplicator via USB/Copy Connect or LAN/Network connectivity
5. Load blank DVD recordable discs into the duplicator’s writer drive(s) then locate the transferred file through the duplicator’s menu keys from the internal hard drive
6. Initiate the copy process and when the finished discs all successfully copy, these discs will have the copy protection already embedded.


System Requirements:
Operating Systems


Windows® 7 (32 Bit, 64 Bit),
Windows Vista® (32 Bit, 64 Bit),
Windows XP (32 Bit, 64 Bit)
Minimum System Requirement for PC
CPU: Pentium 4, 2.4GHz; RAM: 512MB; 1 x Hi-Speed USB 2.0 Port
Administrator User Privilege for above Operation Systems

Target Disc Capacity MPN
Actual Size Single Packing
4 1000 SUP1000-S4T-BK Size:
W 20" x D 26" x H 29"
(51 x 66 x 73.5 cm)

Weight:
90 lbs (41 kg)
Size:
W 25" x D 29" x H 34"
(63.5 x 73.5 x 86.5 cm)

Weight:
105 lbs (47.7 kg)
6 1000 SUP1000-S6T-BK Size:
W 20" x D 26" x H 29"
(51 x 66 x 73.5 cm)

Weight:
95 lbs (43 kg)
Size:
W 25" x D 29" x H 34"
(63.5 x 73.5 x 86.5 cm)

Weight:
110 lbs (50 kg)
8 1000 SUP1000-S8T-BK Size:
W 20" x D 26" x H 29"
(51 x 66 x 73.5 cm)

Weight:
100 lbs (45.5 kg)
Size:
W 25" x D 29" x H 34"
(63.5 x 73.5 x 86.5 cm)

Weight:
115 lbs (52.3 kg)


Available Upgrade
Part Number Description
Upgrade1TB Upgrade Hard Drive from 500 GB To 1TB
Upgrade2TB Upgrade Hard Drive from 500 GB To 2TB


Available Add-on*
Item Code Item
USB-CP USB 2.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB-MFCP USB 2.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-CP USB 2.0 & eSATA with CopyConnect & Copy Protection + 5 FREE Licenses
USBeSATA-MFCP USB 2.0 & eSATA with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses
USB3-CP USB 3.0 with CopyConnect & Copy Protection + 5 FREE Licenses
USB3-MFCP USB 3.0 with Multi-File CopyConnect & Copy Protection + 5 FREE Licenses

*This option only available on Titan Supreme 8 Targets

Extended Warranty for Titan Supreme 2nd Year
Part Number Description
EW2SupDVD 2nd Year Extended Warranty for Titan Supreme DVD Series


Extended Warranty for Titan Supreme 2nd Year & 3rd Year
Part Number Description
EW3SupDVD 2nd & 3rd Year Extended Warranty for Titan Supreme DVD Series
