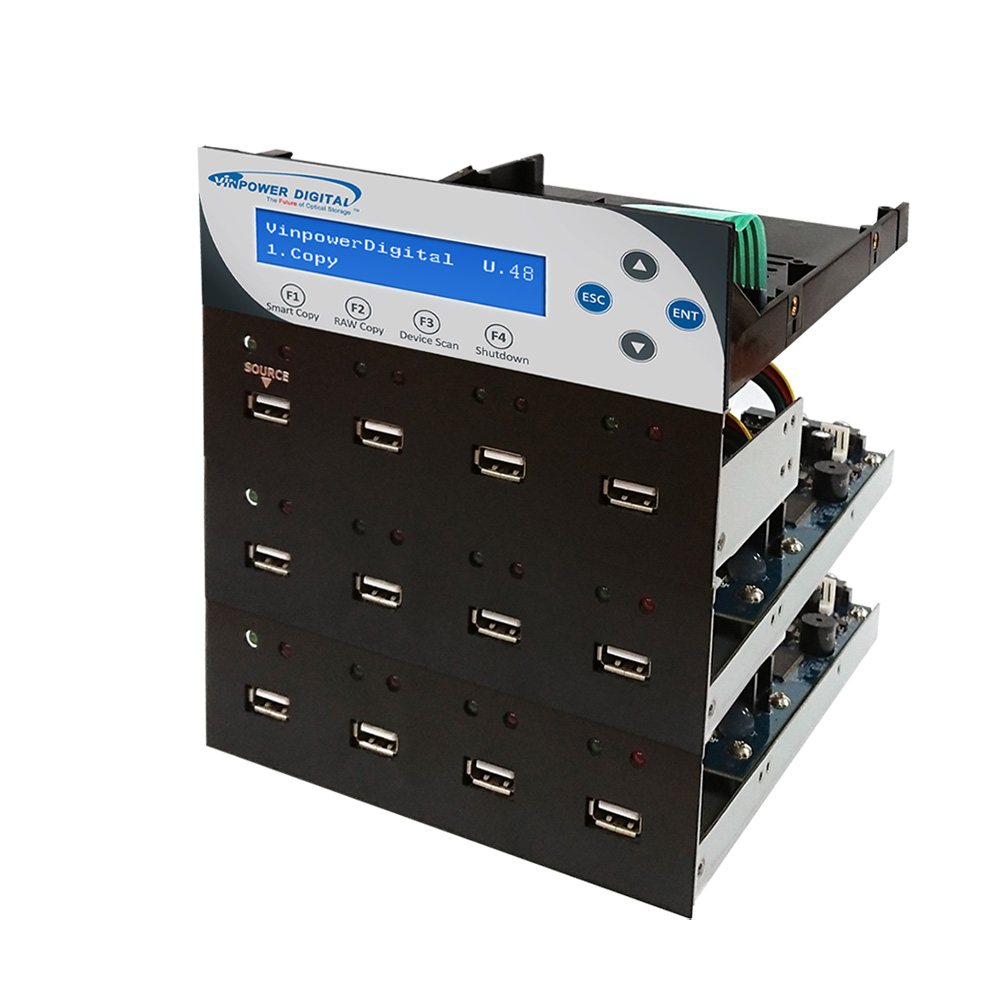

USBShark USB Duplicator Controller

Description

Digital content is the driving force of content delivery in business and even consumer applications and is growing by leaps and bounds. One of the fastest growing methods for distributing content is through flash memory which is most commonly recognized as USB pen drives or SD and Compact Flash cards. Flash memory devices are used in a multitude of components including computers, smart phones, portable gaming devices, and other useful hardware applications. With so many devices able to use and specifically geared toward this form of digital media, content providers large and small will need a way to make quick reliable copies. This is why Vinpower Digital has developed a line of Flash Controllers.

Vinpower Digital is a leader in digital duplication equipment, providing high quality low cost equipment for all forms of digital transference devices. Through our staff of expert engineers, highly trained assembly personnel, and helpful customer service, we're committed to meeting the most stringent quality control in the business, our own! At Vinpower Digital, just good enough is not good enough for us.



Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Asynchronous Duplication:
    Able to copy any size master data onto multiple sources asynchronously (independently) without sacrificing duplication speed or quality for faster and more reliable duplication.
  3. Smart copy feature:
    This feature is used to quickly copy all accessible content contained on the USB device.
  4. Supports all data Formats with bit by bit duplication
  5. Supports all currently available USB drive:
    Supports all currently available USB drive in the market
  6. Largest manual tower range
    Up to 63 targets
  7. Future functions upgradeable through firmware:
    Duplicator is able to be upgraded by future firmware updates.
  8. Secure Erase:
    Fully erase the USB device without the data being recovered.
  9. Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request. (Chinese available upon request)

Additional Features:

  1. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  2. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  3. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  4. Fast Key Support:
    4 fast keys for faster operations.
  5. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  6. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  7. USB Prescan feature:
    Able to scan the source USB device for physical reading error.
  8. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.
**Available only on specific models.

Model
USBShark™ USB Duplicator Controller
Operating Type
Stand-alone
Target
3, 7, 11, 15, 23, 31, 39, 47, 55, 63
Buffer Memory
128MB for every 8 ports
Account Management
32 users (Standard License) or 64 users (Premium License)
Asynchronous
Duplication
Yes

Smart Copy
Yes
Auto Counter
Yes
File System Supported
HFS+, HFSX, FAT, exFAT, NTFS, ext2/3/4
Max USB Size Supported
2TB

CF Support
Optional (with CF Interface Module Addon)
Language Support
English, Spanish, French, Japanese & more. Chinese can be added upon request.
Display
20 x 2 BLUE LCD
Status LED
Green/Red LED on each port
Color
Black
Maximum Read Speed
33 MB/Sec≈2GB/Min
USB Flash Drives
Supported
Recognized USB 3.0/2.0/1.1 Flash Drives

Firmware Upgradeable
Yes
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Manufacture
Vinpower Digital


Throughput Capacity Per Hour:
Target 3 7 11 15 23 31 39 47 55 63
 USB size: 512MB* 420 980 1540 2100 3220 4340 5460 6580 7700 8820
 USB size: 1 GB* 210 490 770 1050 1610 2170 2730 3290 3850 4410
 USB size: 2 GB* 105 245 385 525 805 1085 1365 1645 1925 2205
 USB size: 4 GB* 51 119 187 255 391 527 663 799 935 1071
 USB size: 8 GB* 24 56 88 120 184 248 312 376 440 504


Important Notice
  • The actual reading/writing speed may vary depends on actual USB device.
  • This unit will not copy source material that contains copy protection or non-standard USB storage protocol.

Target MPN
Actual Size Single Packing Double Packing
3 VPD-USB-3T-KIT Size:
W 7" x D 12" x H 8.5"
(17.8 x 30.5 x 21.6 cm)

Weight:
8 lbs (3.6 kg)
Size:
W 10 1/2" x D 15" x H 11 1/2"
(26.7 x 38.1 x 29.2 cm)

Weight:
9 lbs (4 kg)
Size:
W 16" x D 13" x H 12"
(40.6 x 33 x 30.5 cm)

Weight:
11 lbs (5 kg)
7 VPD-USB-7T-KIT Size:
W 7" x D 12" x H 8.5"
(17.8 x 30.5 x 21.6 cm)

Weight:
9 lbs (4 kg)
Size:
W 10 1/2" x D 15" x H 11 1/2"
(26.7 x 38.1 x 29.2 cm)

Weight:
10 lbs (4.5 kg)
Size:
W 16" x D 13" x H 12"
(40.6 x 33 x 30.5 cm)

Weight:
12 lbs (5.4 kg)
11 VPD-USB-11T-KIT Size:
W 7.5" x D 13.5" x H 12"
(19.1 x 34.3 x 30.5 cm)

Weight:
12 lbs (5.4 kg)
Size:
W 12" x D 17" x H 17"
(30.5 x 43.2 x 43.2 cm)

Weight:
13 lbs (5.9 kg)
Size:
W 19" x D 19" x H 15"
(48.3 x 48.3 x 38.1 cm)

Weight:
15 lbs (6.8 kg)
15 VPD-USB-15T-KIT Size:
W 8" x D 20" x H 12"
(20.3 x 50.8 x 30.5 cm)

Weight:
15 lbs (6.8 kg)
Size:
W 12" x D 25" x H 16"
(30.5 x 63.5 x 40.6 cm)

Weight:
18 lbs (8.17 kg)
Size:
W 15" x D 28" x H 19"
(38.1 x 71.1 x 48.3 cm)

Weight:
22 lbs (9.9 kg)
23 VPD-USB-23T-KIT Size:
W 7.5" x D 21" x H 15"
(19 x 53 x 38 cm)

Weight:
15.8 lbs (7.17 kg)
Size:
W 12" x D 25" x H 20"
(30.5 x 63.5 x 51 cm)

Weight:
21.8 lbs (9.89 kg)
Size:
W 16" x D 29" x H 23"
(41 x 73.4 x 58.2 cm)

Weight:
27.8 lbs (12.6 kg)
31 VPD-USB-31T-KIT Size:
W 7.5" x D 21" x H 18.5"
(19 x 53 x 46.8 cm)

Weight:
18.9 lbs (8.57 kg)
Size:
W 12" x D 25" x H 24"
(30.5 x 63.5 x 61 cm)

Weight:
25.4 lbs (11.5 kg)
Size:
W 16" x D 29" x H 27"
(41 x 73.4 x 68.3 cm)

Weight:
32.9 lbs (14.9 kg)
39 VPD-USB-39T-KIT Size:
W 7.5" x D 21" x H 22"
(19 x 53 x 55.6 cm)

Weight:
22.5 lbs (10.2 kg)
Size:
W 12" x D 25" x H 27"
(30.5 x 63.5 x 69 cm)

Weight:
30.5 lbs (13.8 kg)
Size:
W 16" x D 29" x H 30"
(41 x 73.4 x 76 cm)

Weight:
38.5 lbs (17.5 kg)
47 VPD-USB-47T-KIT Size:
W 7.5" x D 21" x H 26"
(19 x 53 x 55.6 cm)

Weight:
26.1 lbs (11.8 kg)
Size:
W 12" x D 25" x H 27"
(30.5 x 63.5 x 69 cm)

Weight:
32.1 lbs (14.6 kg)
Size:
W 16" x D 29" x H 30"
(41 x 73.4 x 76 cm)

Weight:
40.1 lbs (18.2 kg)
55 VPD-USB-55T-KIT Size:
W 7.5" x D 21" x H 30"
(19 x 53 x 76.2 cm)

Weight:
29.7 lbs (13.5 kg)
Size:
W 12" x D 26" x H 35"
(30.4 x 66 x 89 cm)

Weight:
45.2 lbs (20.5 kg)
Size:
W 16" x D 29" x H 38"
(40.6 x 73.4 x 96.5 cm)

Weight:
48.2 lbs (21.9 kg)
63 VPD-USB-63T-KIT Size:
W 7.5" x D 21" x H 33"
(19 x 53 x 83.9 cm)

Weight:
32.8 lbs (14.9 kg)
Size:
W 12" x D 26" x H 38"
(30.4 x 66 x 96.6 cm)

Weight:
49.8 lbs (22.6 kg)
Size:
W 16" x D 29" x H 41"
(40.6 x 73.4 x 104 cm)

Weight:
52.8 lbs (24 kg)
8 VPD-USB-8TLCD-KIT
(Note:DAISY CHAIN VERSION WITH LCD)
Size:
W 7" x D 12" x H 8.5"
(17.8 x 30.5 x 21.6 cm)

Weight:
9 lbs (4 kg)
Size:
W 10 1/2" x D 15" x H 11 1/2"
(26.7 x 38.1 x 29.2 cm)

Weight:
10 lbs (4.5 kg)
Size:
W 16" x D 13" x H 12"
(40.6 x 33 x 30.5 cm)

Weight:
12 lbs (5.4 kg)
8 VPD-USB-8T-KIT
(Note:NOTE: DAISY CHAIN VERSION)
Coming Soon
Coming Soon
Coming Soon
