Model

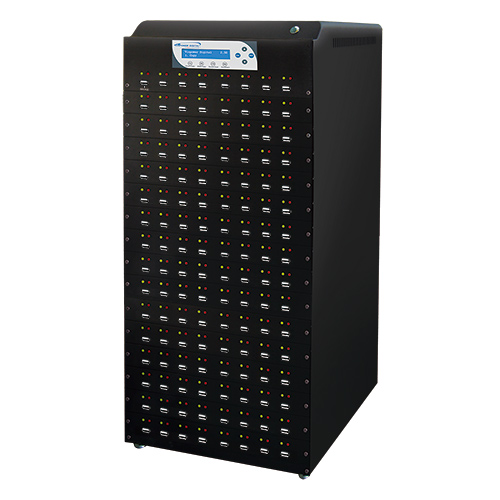

USBDupeBox™ USB Duplicator
Operating Type
Stand-alone
Target
127
Buffer Memory
128MB for every 8 ports
Account Management
32 users (Standard License) or 64 users (Premium License)
Asynchronous Duplication
Yes
Smart Copy
Yes
Auto Counter
Yes
File System Supported
HFS+, HFSX, FAT, exFAT, NTFS, ext2/3/4
Max USB Size Supported
2TB
CF Support
Optional (with CF Interface Module Addon)
Language Support
English, Spanish, French, Japanese & more. Chinese can be added upon request.
Display
20 x 2 Blue LCD
Status LED
Green/Red LED on each port
Color
Black
Maximum Read Speed
33 MB/Sec≈2GB/Min
Maximum Write Speed
31 MB/Sec≈2GB/Min
USB Flash Drives Supported
Recognized USB 3.0/2.0/1.1 Flash Drives
Firmware Upgradeable
Yes
Power Supply
Input : 90 ~ 240 V AC
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital
Throughput Capacity Per Hour:
Target |
39 |
79 |
127 |
USB size: 512MB* |
5460 |
11060 |
17780 |
USB size: 1 GB* |
2730 |
5530 |
8890 |
USB size: 2 GB* |
1365 |
2765 |
4445 |
USB size: 4 GB* |
663 |
1343 |
2159 |
USB size: 8 GB* |
312 |
632 |
1016 |
Important Notice
- The actual reading/writing speed may vary depends on actual USB device.
- This unit will not copy source material that contains copy protection or non-standard USB storage protocol.
